Short Stroke Conductive Plastic Potentiometers LCP-10 / LCP-20 from PANKAJ are developed in line with the company’s vision of pioneering potentiometer manufacturing using 100% in-house technology. Designed for precise linear control, these potentiometers offer smooth operation, high accuracy, and stable output. Their compact short-stroke design makes them ideal for applications where space is limited and precise movement sensing is required. Built with advanced conductive plastic elements, LCP-10 and LCP-20 ensure long operational life, reliability, and consistent performance in industrial control, automation, instrumentation, medical equipment, and other demanding applications.

Model Information

LCP-10/LCP-20 (LCP-10/LCP-20)

Get Product Information

Standard Features

  • 20 mm square housing made of strong glass reinforced engineering plastic
  • 5 mm Diameter spring return plunger
  • Flange mounting
  • 10 mm or 20 mm Electrical travel
  • Gold plated PCB
  • 54 mm relimate connector
  • Gold Plated PCB Terminals
  • Gold plated wiper contact
  • Long life
  • Infinite resolution

Optional Features

  • With Switch

Applications

  • Linear Sensing,
  • Foot/hand operated actuators,
  • Automotive,
  • Switch gears,
  • Variable limit switch,
  • Variable brakes sensor & many
  • Feedback Controls : Displacement, Pressures in hydraulics & pneumatics,

Technical Specifications

Comprehensive data for integration into your engineering workflows.

Resistance Values

1K, 5K & 10 KΩ

Resistance Tolerance

+25%

Linearity

+1%

Stroke Length

Mech: 12 mm/22 mm, Electrical : 10/20 mm

Stroke Life

1 Million cycles

Operating Temperature

0°C to 70°C

Output Curve

Linear

H. V. Test

500 VAC for 1 minute

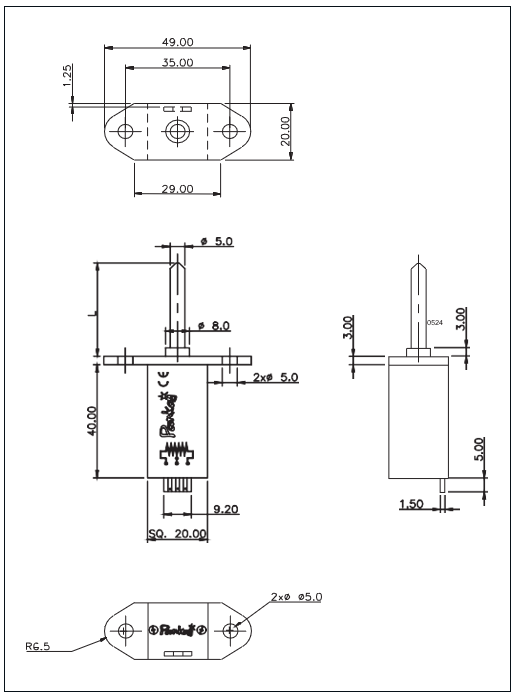

Technical Diagram

Click to view full size

Ordering Information

Example: LCP-10 or LCP-20, 1K

Model No.

Stroke Length

Resistance Value in ohm

LCP-10

10 mm

1K, 5K, 10K

LCP-20

20 mm



Scroll horizontally to view full table
