Model: SR.W-3
PANKAJ,Wire Wound Potentiometer – SR.W-3 enjoys the privilege of being the only Indian Product Manufactured to meet Defense specifications DEF 5121, JSS – 50502
Model Information
SR.W-3 (SR.W-3)
Get Product Information
Standard Features
- Wire Wound Potentiometers
- Brass Nickel Plated Bush & Spindle
- Tin Plated Terminals
- Thermoset Housing
- Flame Proof Housing
- IP-65
- Panel & Spindle sealing, hence can be used in harsh environmental
Optional Features
- Anti Rotating Mounting Plate
Applications
- Temperature Controllers,
- Power Supplies,
- AC/DC Motor Drives,
- Process Control Equipments,
- Test and Measuring Instruments,
- Control Panels,
- Offset Settings & many more.
Technical Specifications
Comprehensive data for integration into your engineering workflows.
Military Grade Specifications
|
Resistance Range |
50Ω to 10KΩ +10% |
|
Power Rating |
1 Watt @ 70°C |
|
Stability |
+2% |
|
TCR |
+150 ppm/°C (Max.) |
|
Temperature Range |
T 40/70 (-40°C to +70°C) |
|
Damp Heat |
H 12 (2 Cycles 21 Days) |
|
Air Pressure |
P 16:8.5 kpa |
|
Acceleration (Steady State) |
A 10: 170 m/s2 |
|
Impact (Shock) |
S 12: 500 m/s2, 11 ms |
|
Vibration |
V 12: 10 to 2000 Hz. 100 m/s2 |
TCR = Temperature Co-efficient of Resistance Wire

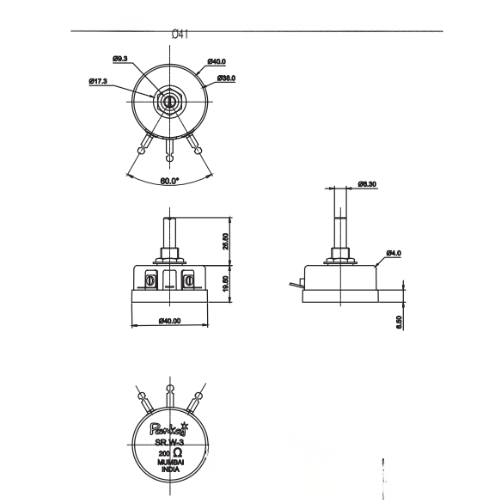

Technical Diagram
Click to view full size
Ordering Information
Example: SR.W-3, 25K, 25 mm
|
Model No. |
Resistance Value in ohms |
Shaft Length in mm |
Other Options |
|
SR.W-3 |
50, 100, 150, 200, 250, 500, 1K, |
19 mm or 25 mm |
P - Locking Plate |
|
|
2K, 2K5, 3K, 5K, 10K |
|
L - Shaft Locking Nut |
