Foot Operated Potentiometer FOP
Foot Operated Potentiometer FOP
Model: FOP
An innovative product from PANKAJ, Foot Operated Potentiometer – FOP, using Pankaj Make Short Stroke Conductive Plastic Potentiometers LCP-10 for linear control.
Operation
On pressing the foot pedal, switch of 230VAC 10 Amp 2NC+2NO with isolated phase and neutral operates first, followed with potentiometer resistance variation. On releasing foot pedal, the potentiometers resistance changes, comes to its original position then switch contacts is put OFF.
Model Information
FOP (FOP)
Get Product Information
Standard Features
Material used
- Conductive plastic potentiometers
- Gold Plated PCB
- Gold Plated Terminals
- Gold Plated Wiper Contact
- Heavy Duty Aluminum Casting Housing
Features
- Conductive plastic potentiometers
- Gold Plated PCB
- Gold Plated Terminals
- Gold Plated Wiper Contact
- Heavy Duty Aluminum Casting Housing
Optional Features
N/A
Applications
- Potentiometer control,
- Welding,
- Coil Winding,
- Potentiometric control with hands free operation,
- Potter’s Wheel,
- Motor speed variation & many more
Technical Specifications
Comprehensive data for integration into your engineering workflows.
N/A

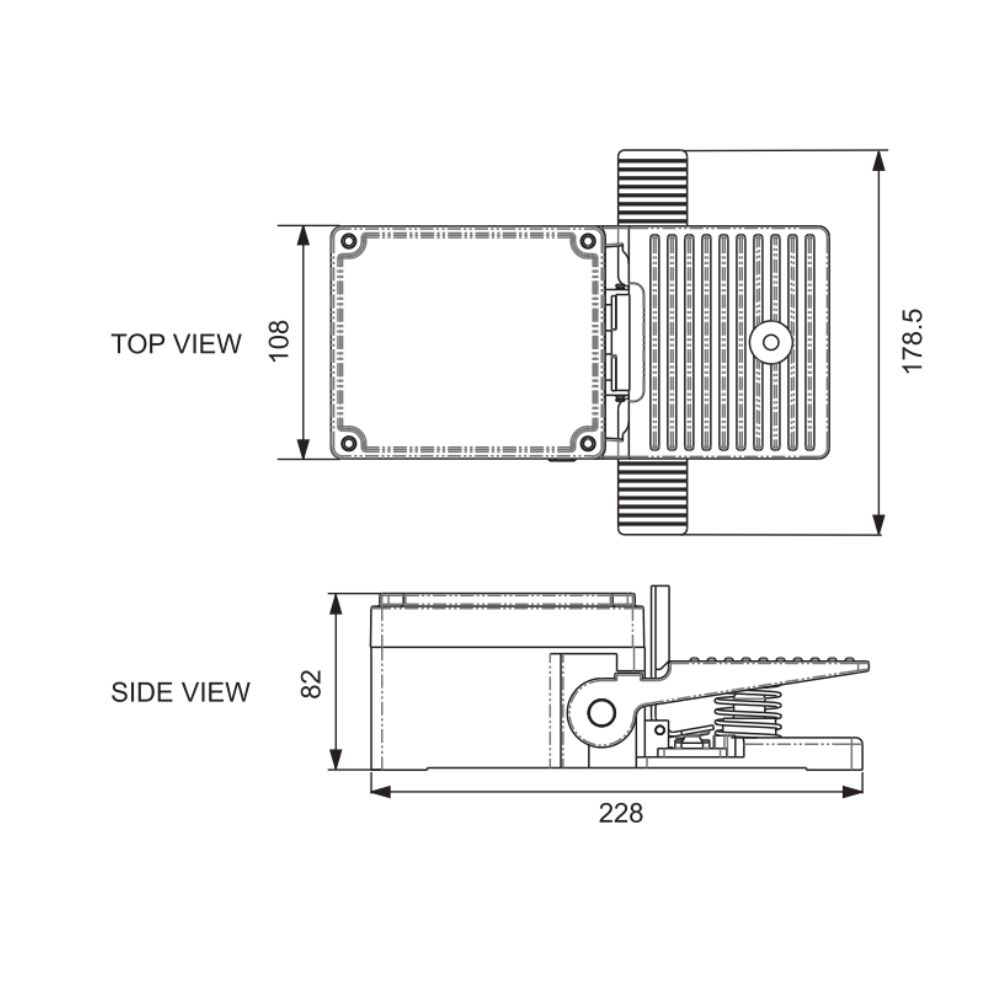

Technical Diagram
Click to view full size
Other Options
Click to view full size

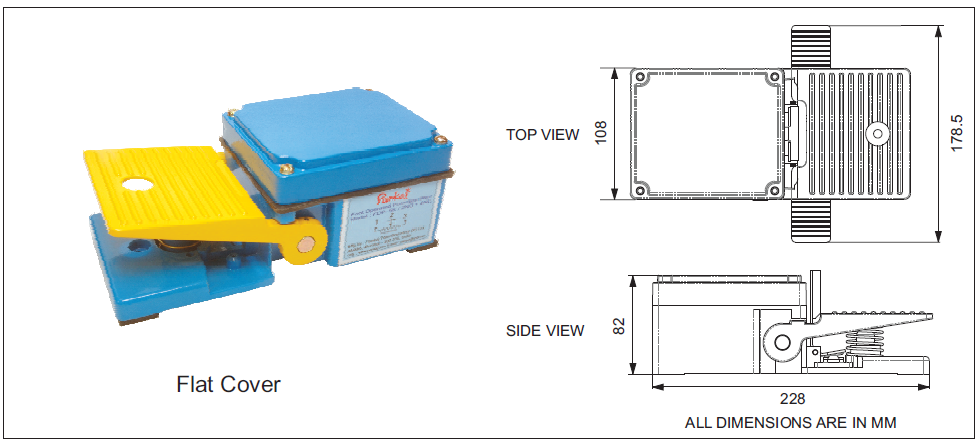

Flat Cover

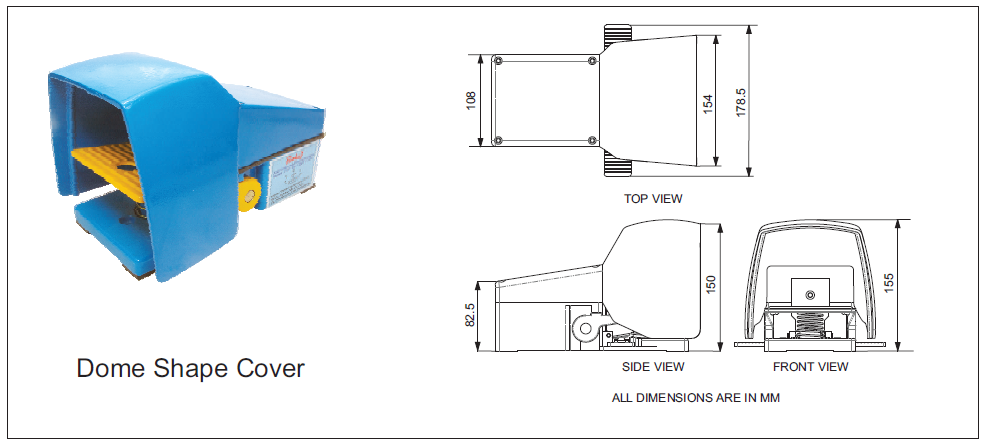

Dome shape cover
Ordering Information
Foot Operated Potentiometer
Model - (Add model you required)
