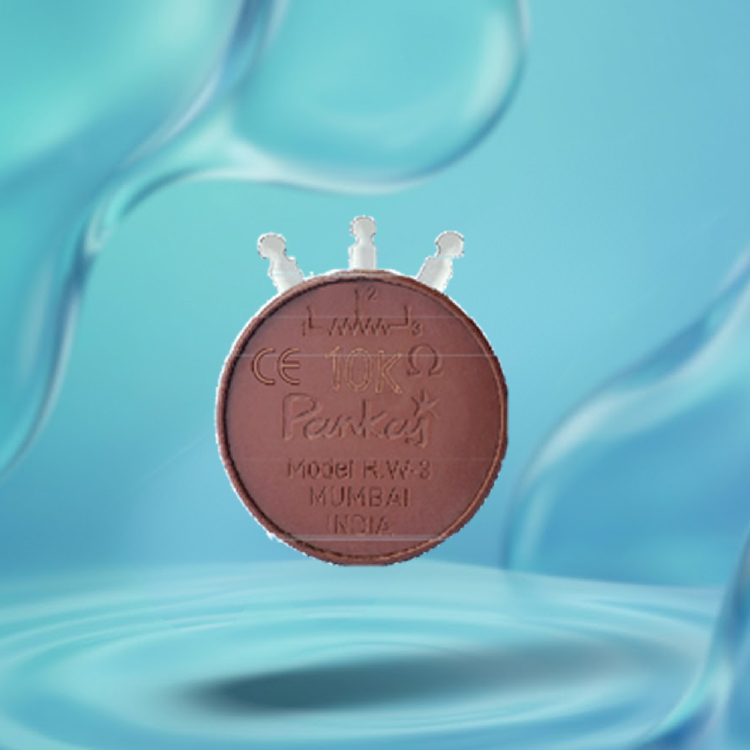

Single Turn Wire Wound Potentiometer Model: R.W-3-M, Metal Shaft
Model:
The most sought after product in Domestic and International market from PANKAJ, Single Turn Wire Wound Potentiometer R.W-3-M (Metal Shaft) marks it’s presence since over five decades. Offers best value for money in manual setting application
Model Information
3 Watt Potentiometers
Get Product Information
Standard Features
w Brass Nickel Plated Bush & Spindle
w Tin Plated Terminals
w High Grade Engineering Moulded Plastic Housing
Optional Features
- Anti Rotating Mounting Plate
- Various Shaft Lengths and Designs
- Shaft Locking Nut
Applications
- Temperature Controllers
- Power Supplies, AC/DC Motor Drives
- Process Control Equipments
- Test and Measuring Instruments
- Control Panels
- Offset Settings & many more.
Technical Specifications
Comprehensive data for integration into your engineering workflows.
|
Resistance Range |
25 Ω to 25 KΩ |
|
Resistance Tolerance |
+10% Standard, +5% Special |
|
Power Rating |
3 Watt @ 40°C |
|
End Resistance |
0.2 Ω or 0.02% which ever is greater |
|
Elec. Angle of Rotation |
265° + 15° |
|
Maximum Working Voltage |
250 VDC |
|
Insulation Resistance |
200 MΩ @ 500 VDC |
|
Voltage Proof |
750 VAC for 1 Min. At Sea level |
|
TCR of Resistance Wire |
150 ppm/°C |
|
Rotational Life Expectancy |
20,000 Cycles at 15 RPM |
|
Temperature Range |
0 - 70°C. |

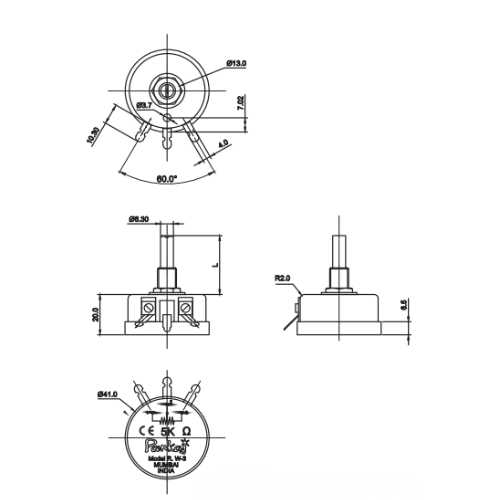

Technical Diagram
Click to view full size
Ordering Information
|
Model No. |
Resistance Value in ohms |
Shaft Length in mm |
Other Options |
|
R.W-3-M |
25, 50, 100, 150, 200, 250, 500, 1K, |
Standard: 19 mm or 25 mm |
P - Locking Plate |
|
|
2K, 2K5, 3K, 5K, 10K, 20K, 25K |
|
L - Shaft Locking Nut |
