R.W-5
Single Turn Wire Wound Potentiometer R.W-5
Model:
PNKAJ, the most popular brand for panel mounted Wire Wound Potentiometers, manufactures model R.W.5 product best suited for Railways & battery charges applications etc. This product is also available with Screw / nut type stud terminals. Incidentally this is the only product of its kind in market.
Model Information
5 Watt Potentiometers
Get Product Information
Standard Features
- Brass Nickel Plated Bush & Spindle
- Tin Plated Terminals
- Thermoset Housing
Optional Features
- Anti Rotating Mounting Plate
- Stud Type Terminal
- Shaft Locking Nut
Applications
- Power Supplies
- Battery Chargers
- Process Control Equipments
- Test and Measuring Instruments
- Control Panels
- Offset Settings & many more
Technical Specifications
Comprehensive data for integration into your engineering workflows.
|
Resistance Range |
50 Ω to 50 KΩ |
|
Resistance Tolerance |
+10% Standard, +5% Special |
|
Power Rating |
5 Watt @ 40°C |
|
End Resistance |
0.2 Ω or 0.02% which ever is greater |
|
Elec. Angle of Rotation |
285°+15° |
|
Maximum Working Voltage |
500 VDC |
|
Insulation Resistance |
500 MΩ @ 500 VDC |
|
Voltage Proof |
1500 VAC for 1 Min. At Sea level |
|
TCR of Resistance Wire |
150 ppm/°C |
|
Rotational Life Expectancy |
20,000 Cycles at 15 RPM |
|
Temperature Range |
0 - 70°C. |

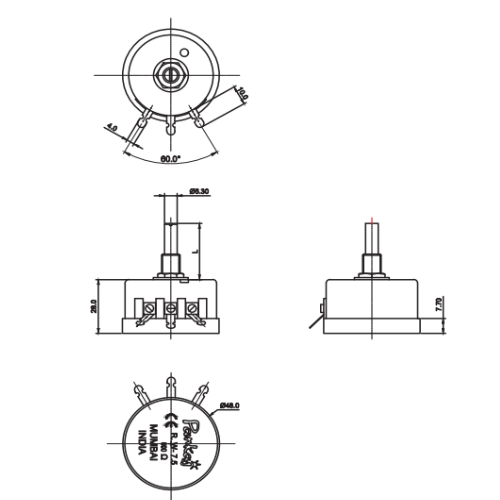

Technical Diagram
Click to view full size
Ordering Information
|
Model No. |
Resistance Value in ohms |
Shaft Length in mm |
Other Options |
|
R. W-5 |
50, 100, 250, 500, 1K, 2K, 2K5, 3K, 5K, |
25 mm |
P - Locking Plate |
|
|
10K, 20K, 25K, 50K |
|
L - Shaft Locking Nut |
