Single Turn Wire Wound Potentiometer R-W- 15
Single Turn Wire Wound Potentiometer R-W- 15
Model:
Model R.W-15 is the highest power ratted panel mounted Potentiometer from PANKAJ has thermosetting housing, good linearity coupled with longer rotational life expectancy in its class. Incidentally this is the only product of its kind in market.
Model Information
15 Watt Potentiometers
Get Product Information
Standard Features
w Brass Nickel Plated Bush & Spindle
w Tin Plated Terminals
w Thermoset Housing
Optional Features
No optional features specified.
Applications
w Railway Battery Charger
w Power Supplies
w AC/DC Motor Drives
w Process Control Equipments
w Test & Measuring Instruments
w Control Panels
Offset Settings & many more
Technical Specifications
Comprehensive data for integration into your engineering workflows.
|
Resistance Range |
50 Ω to 50 KΩ |
|
Resistance Tolerance |
+10% Standard, +5% Special |
|
Power Rating |
15 Watt @ 40°C |
|
End Resistance |
0.2Ω or 0.02 % which ever is greater |
|
Elec. Angle of Rotation |
310° + 15° |
|
Maximum Working Voltage |
500 VDC |
|
Insulation Resistance |
500 MΩ @ 500 VDC |
|
Voltage Proof |
1500 VAC for 1 Min. At Sea level |
|
TCR of Resistance Wire |
150 ppm/°C |
|
Rotational Life Expectancy |
20,000 Cycles at 15 RPM |
|
Temperature Range |
0 - 70°C. |

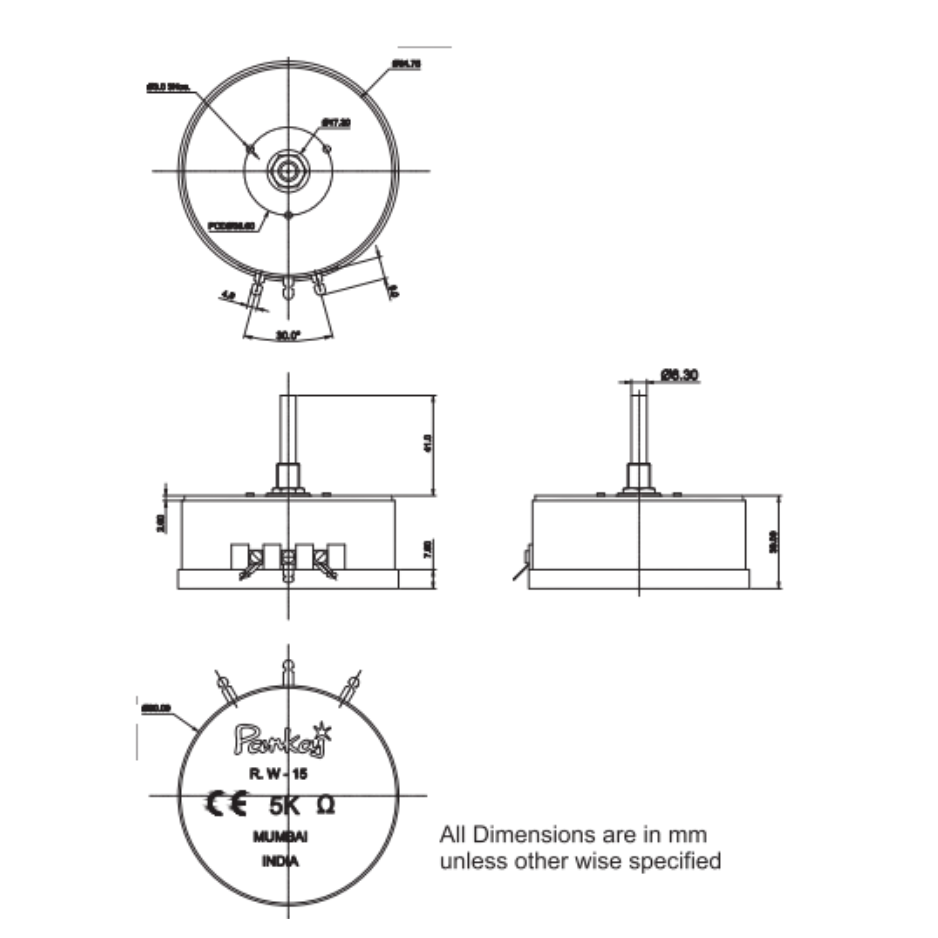

Technical Diagram
Click to view full size
Ordering Information
Example: R.W-15, 10K, 40 mm
|
Model No. |
Resistance Value in ohms |
Shaft Length in mm |
|
R. W-15 |
50, 100, 250, 500, 1K, 2K, 2K5, 3K, 5K, 10K, 20K, 25K, 50K, 100K |
40 mm |
